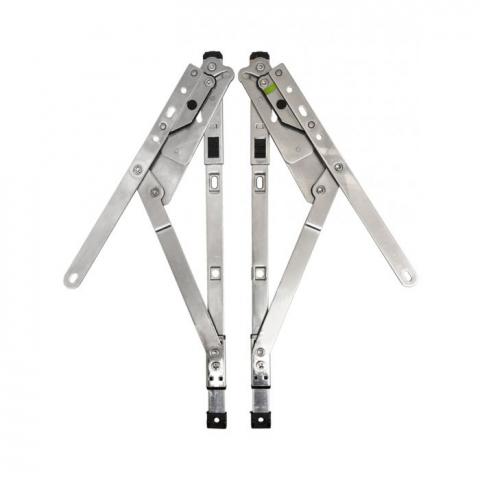

Yale Mega Egress Window Hinge

The Yale Mega Egress Window Hinge is a fantastic new model

Yale Mega Egress is a top quality hinge for large and heavy outward opening casement windows. Available in ‘8 inch’ (227mm) and ’13 inch’ (342mm) versions, Mega Egress can carry sashes up to 900mm wide, weighing up to 35Kg, or up to 40Kg when the sash is less than 800mm wide. The hinge opens to a true 90° (+/-2.5°) and the sash moves outside the frame upon opening, to provide a clear, minimum 450mm, aperture for egress compliance and to maximise the escape route size.

  • Carries sashes from 220 to 900mm wide
  • Carries sashes up to 40Kg
  • Minimum 450mm clear opening for egress compliance
  • 342mm version has Easy Clean setting
  • Tested to BS EN 1670 Grade 5 (neutral salt spray)
  • Tested to EN 1191 (30,000 cycles)
  • Built to pass PAS24 when used with Hinge Protectors
  • 10-Year Yale guarantee
  • Q-secure PREMIUM product (greenteQ Hinge Protectors required)
Find a Manufacturer Register Your Guarantee

Easy Clean Model

The 342mm hinge can be moved into an Easy Clean position that enables the user to clean the external glass from inside the building. The hinge will automatically reset to Egress opening mode when the window is closed after cleaning. Each length is available in variants to suit either 13-14mm or 16 – 18mm cavities so Mega Egress is suitable for use on most window profiles.

Sashes as narrow as 220mm can accommodate the smaller hinge. Although the geometry is different to that on a standard friction stay, Mega Egress can be used in conjunction with standard Hinge Protectors to meet the requirements of PAS24. The hinge is manufactured from hardwearing Grade 430 austenitic stainless steel, and is tested to BS EN 1670 Grade 5 as proof of excellent anti-corrosion performance.
